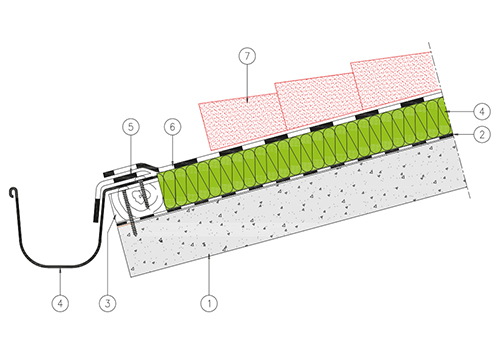

5.4 - GABLED ROOF CONCRETE AND MASONRY SUPPORT: COUPLING PANEL – ROOF TILE PROTECTIVE COVER
  1. Support treated with Primer V70
  2. Isolvapor NB vapour screen/barrier
  3. Mechanically attached wooden profile
  4. Mechanically attached gutter
  5. Joint strip in elastoplastomer membrane with a thickness of 3 mm
  6. Nordpol coupled thermal-insulating element with self-protecting elastoplastomer membrane with chips of slate
  7. Shingle or roof tile protective cover
5.4 - GABLED ROOF CONCRETE AND MASONRY SUPPORT: COUPLING PANEL – ROOF TILE PROTECTIVE COVER,
